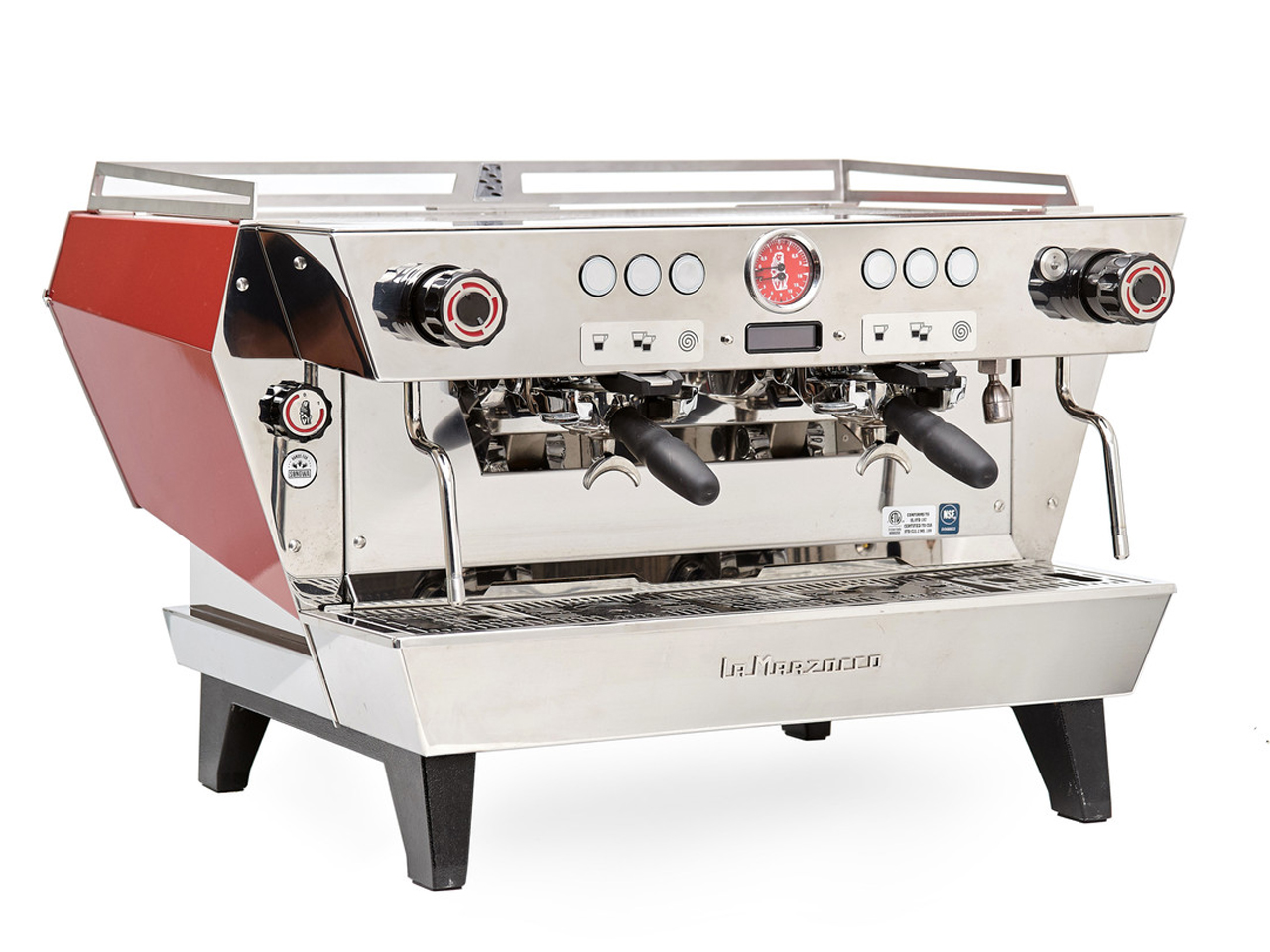

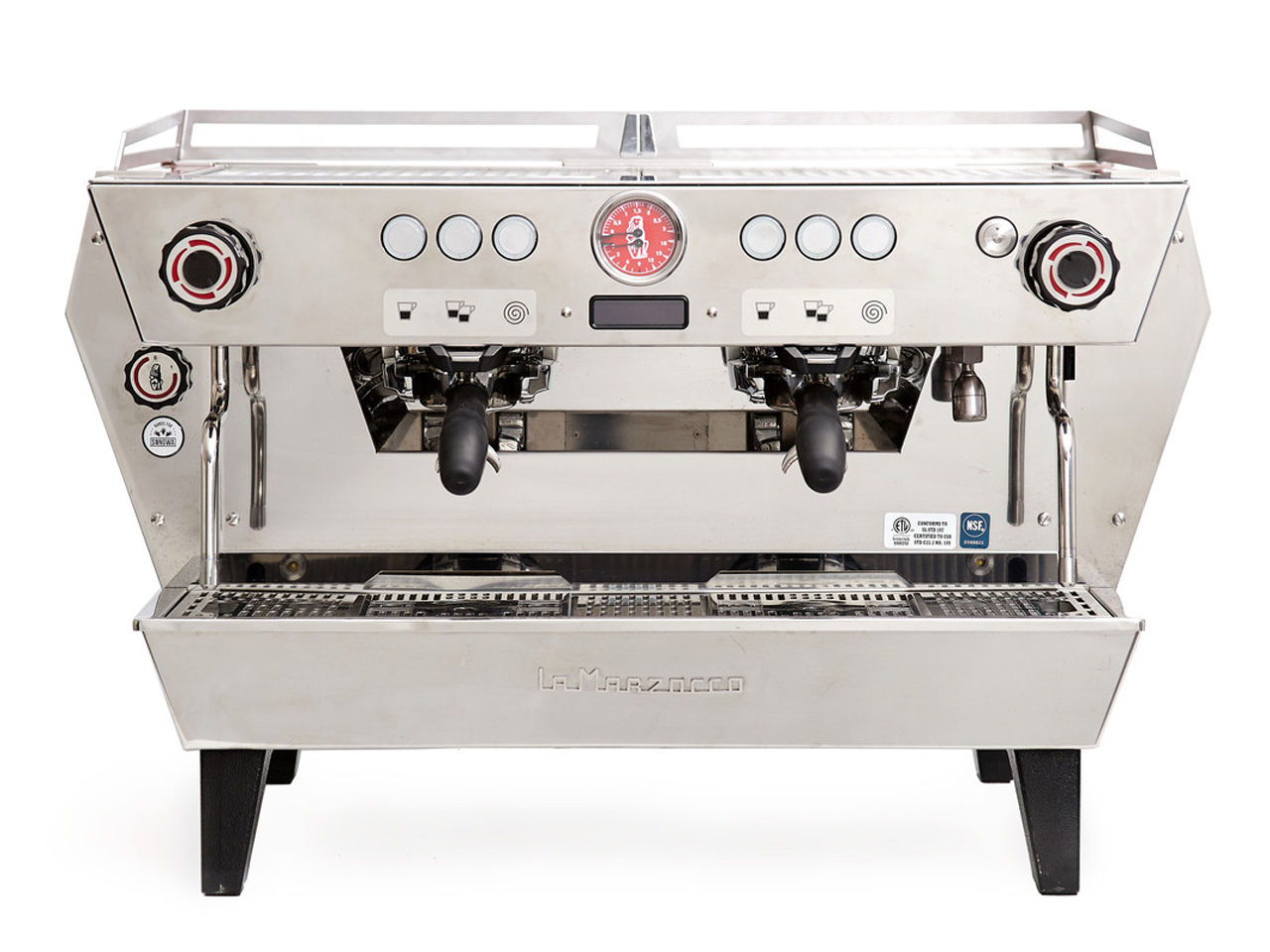

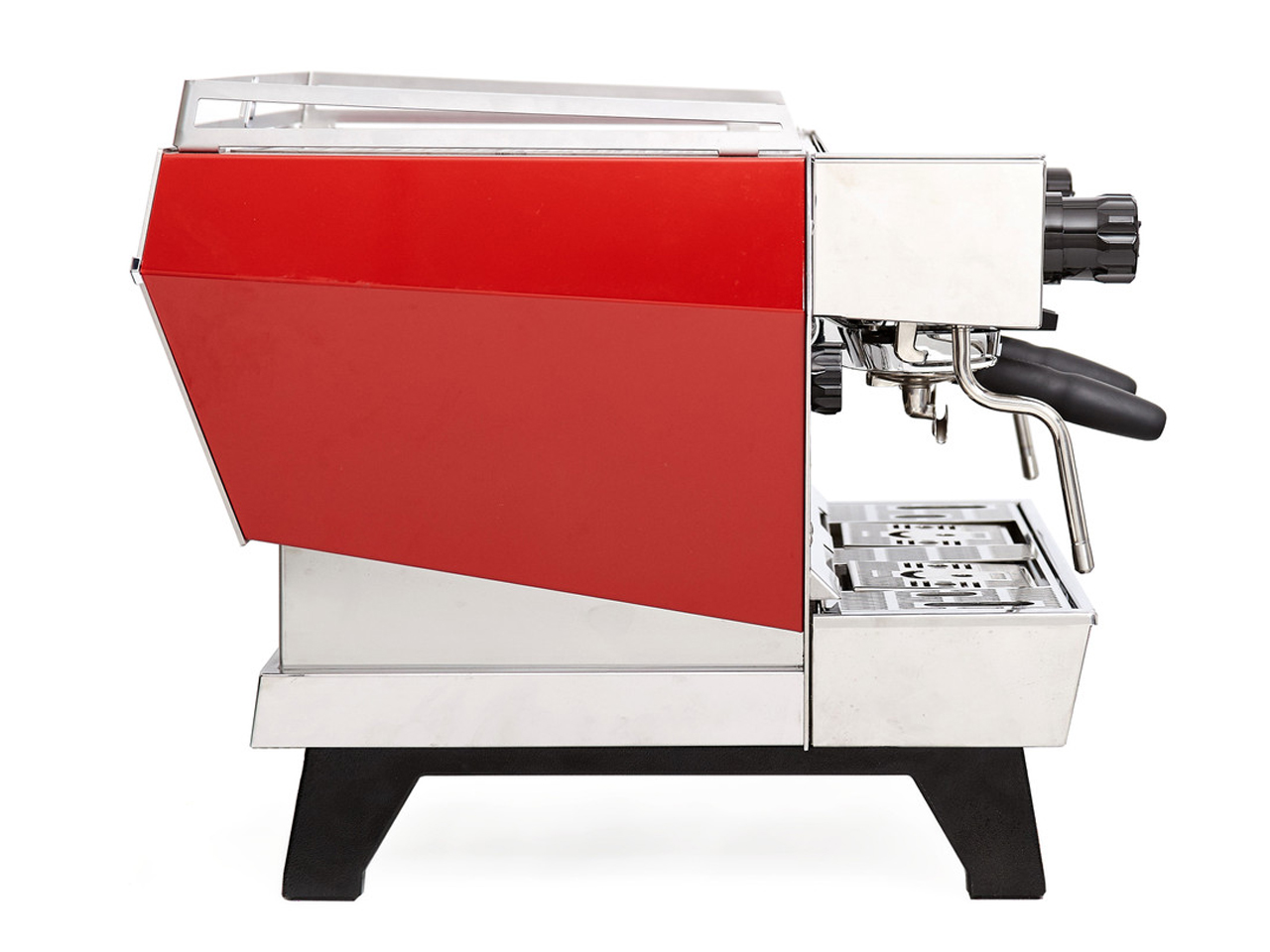

La Marzocco KB90 Auto-Volumetric Espresso Machine
External rotary pump
Accessory box with portafilters, baskets, backflush blind, tamper
3/8″ braided steel water line
3/4″ flex drain tube

16:03Click for sound16:03

Less Stress
Smart workflow and ergonomics are the name of the game for the KB90. When a barista is busy pulling shots
and steaming milk hundreds of times per day, the repetitive motions of the job can be taxing on their body
(just look up “barista wrist” and you’ll see what we mean!). That’s where things like the new straight-in
portafilter come in: it’s designed lock in and pull a shot using a more natural and less stressful movement,
eliminating awkward twisting motions and offering a much gentler experience for the barista’s joints. The
portafilter slides into place on rails and locks upward with ease, and removing it post-shot is done with a
press of the thumb on a release tab. This makes for a slightly more complicated group, but relieves a great
deal of stress on the barista’s body.

New Features
The KB90 also comes complete with a suite of new features, including the brand new Pro Touch wands. Unlike
other cool touch steam wands on the market, La Marzocco’s are made of dual wall vacuum insulated steel, which
seal in the heat and keep the wand cool to the touch even after the busiest of lunch rushes. New steam valves
are not only also easier on barista wrists – with a smaller turning radius to engage full steam power – they
are designed to be rebuilt more quickly and easily, allowing a tech to shut off steam at the boiler so they can
swap out o-rings and rebuild the valve without having to shut the machine down entirely.

Auto Brew Ratio
With optional drip tray scales, the KB90 is able to pull shots with Auto Brew Ratio mode. ABR allows the
barista to weigh a dose in the portafilter directly on the shot scale, and the machine will pull a perfect shot
to your desired output ratio. ABR machines can also be run in Mass Mode, so you can instead pull shots to your
desired output weight directly into your cups. And with Drip Prediction, the KB90 is able to predict when to
cut the flow to the shot to make sure your beverages are consistently tasting their best.
KB90 Spec Sheet
KB90 Parts Catalog
KB90 User Manual
KB90 Installation
Guide

Straight-in portafilter design

Auto steam flush

Barista lights for workspace visibility

Pro touch steam wands

More Features

Four programmable volumetric profiles per group

Saturated groups, boiler insulation, and pre-heat system for thermal stability

Digital display with PID temperature control

Optional Auto Brew Ratio scales available

1 year parts warranty/13 months labor warranty

Specifications

Specifications
2 Group
3 Group

Coffee Boiler Capacity (liters):
1.8
3.4

Steam Boiler Capacity (liters):
3.5
7

Dimensions HxWxD (inches):
17.5 x 32 x 24.5
17.5 x 41.5 x 24.5

Weight (lbs):
170
223

Voltage:
208-240 V, 60 Hz single phase
208-240 V, 60 Hz single phase

Element Wattage:
5400
7300

Amp Service Required:
30
50

Certifications:
UL-197, NSF-8, CAN/CSA-C22.2 No. 109
UL-197, NSF-8, CAN/CSA-C22.2 No. 109
